Direct Warping
Applications
▸High-Production Textile Units
▸Direct Warping & Creeling Operations
▸Weaving Mills & Beam Sizing Units

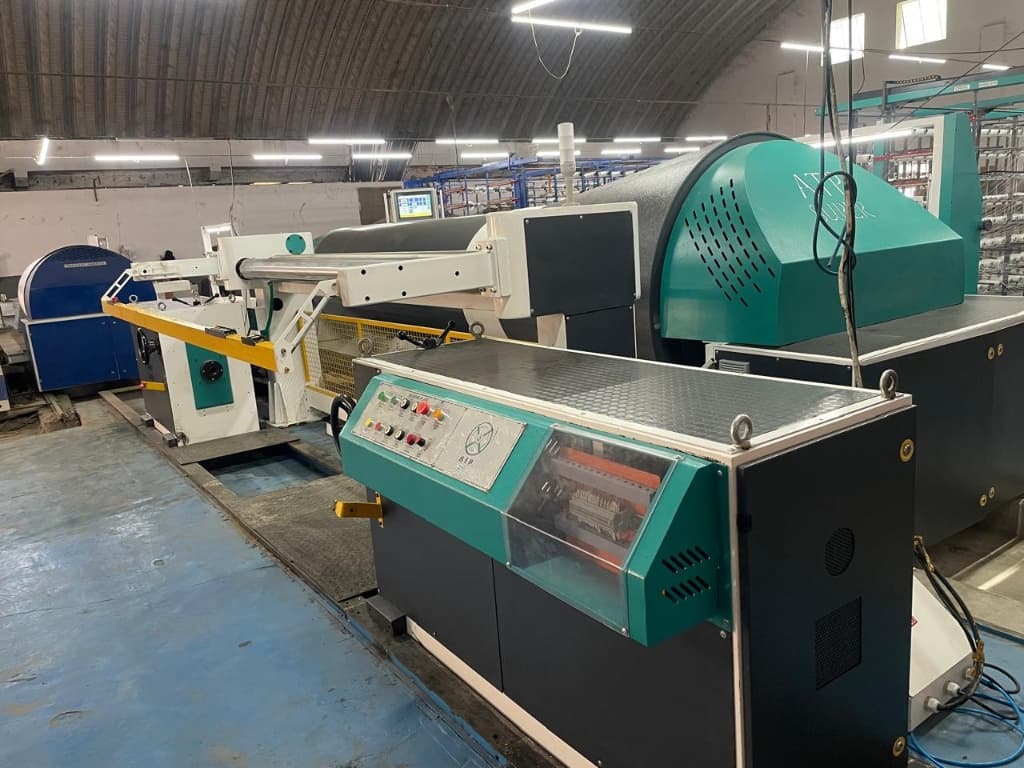

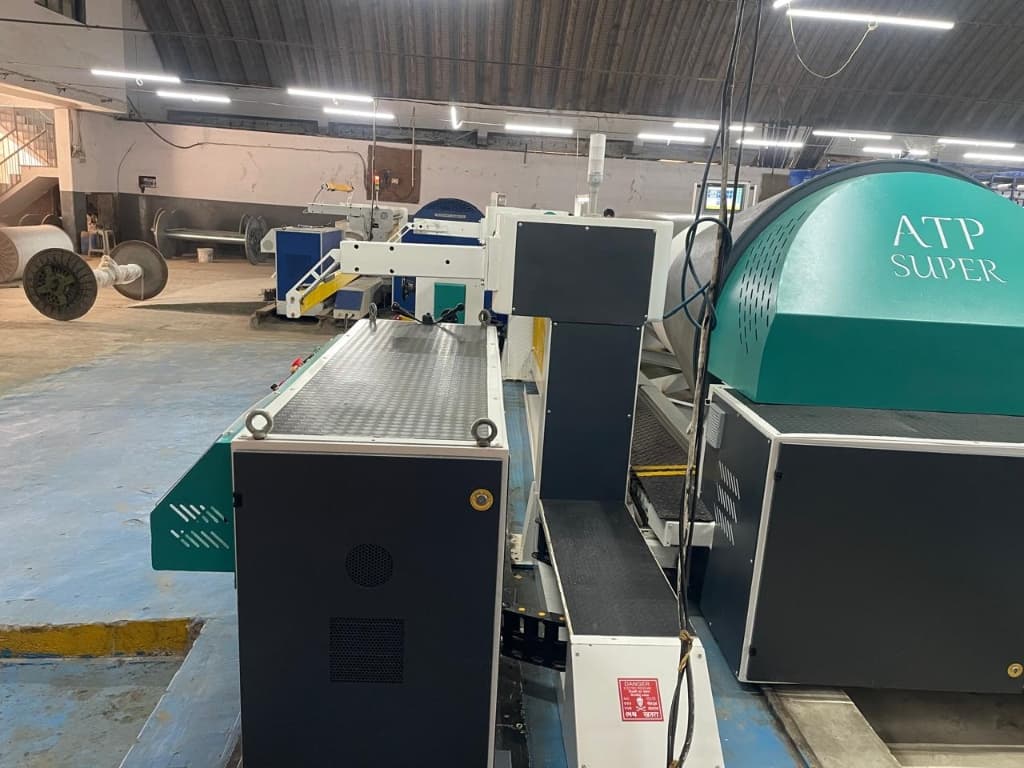

ATP Super
The ATP Super is ATP FAB's flagship high-speed direct warping machine featuring a 3000 mm (300 cm) working width and a 672-end creel capacity. Equipped with the Servo Model 2025 Control System for precise operation, this semi-automatic machine provides uniform yarn tension, high-accuracy beam preparation, and reliable operation suitable for high-production textile units. Immediate dispatch is available.
Technical Specifications
Working Width3000 mm (300 Cm)
Creel Capacity672 Ends
RPM Speed600 - 700 RPM

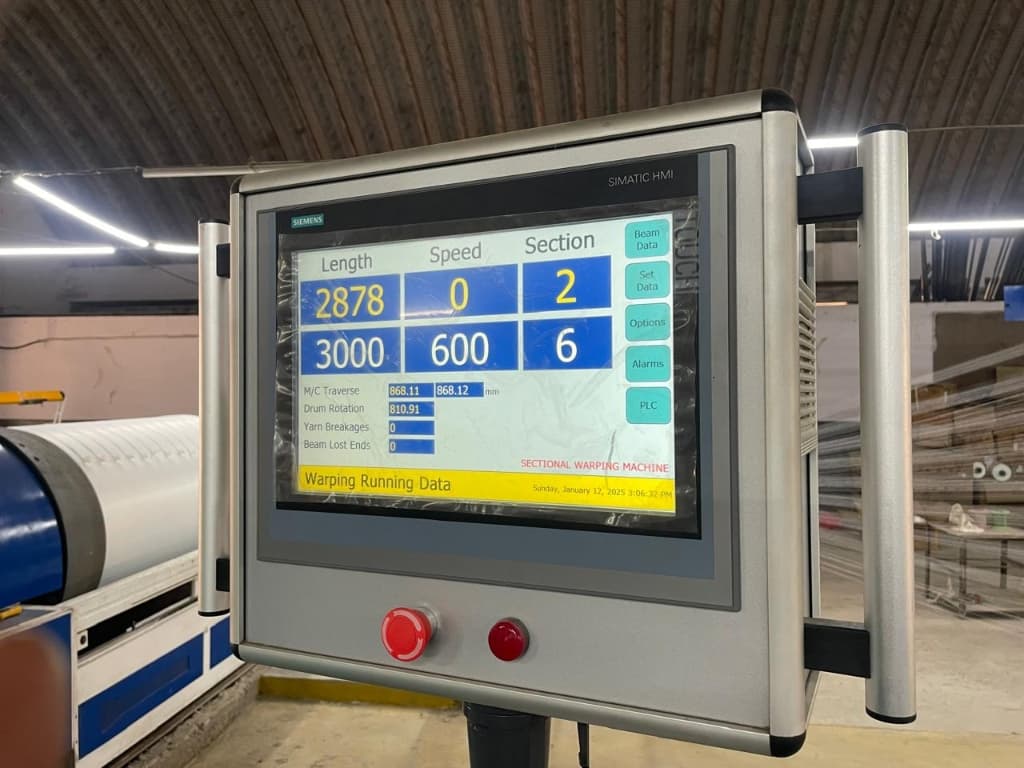

Control SystemServo Model 2025
TypeSemi-Automatic
Power Requirement15 HP AC Variable Frequency Drive
Compatible YarnsCotton, Polyester, Blends, Filament Yarns
Production CapacityUp to 8 Warp Beams / Shift
Make / BrandATP Super
DispatchImmediate Available
Key Features
- ✓Working Width: 3000 mm / 300 cm
- ✓Creel Capacity: 672 Ends
- ✓Semi-Automatic operation with Servo Model 2025 Control System
- ✓High-speed operation at 600 - 700 RPM
- ✓Uniform yarn tension & high-accuracy beam preparation
- ✓Good, fully operational condition for high-production textile units
- ✓Immediate dispatch available
