Sectional Warping Machine

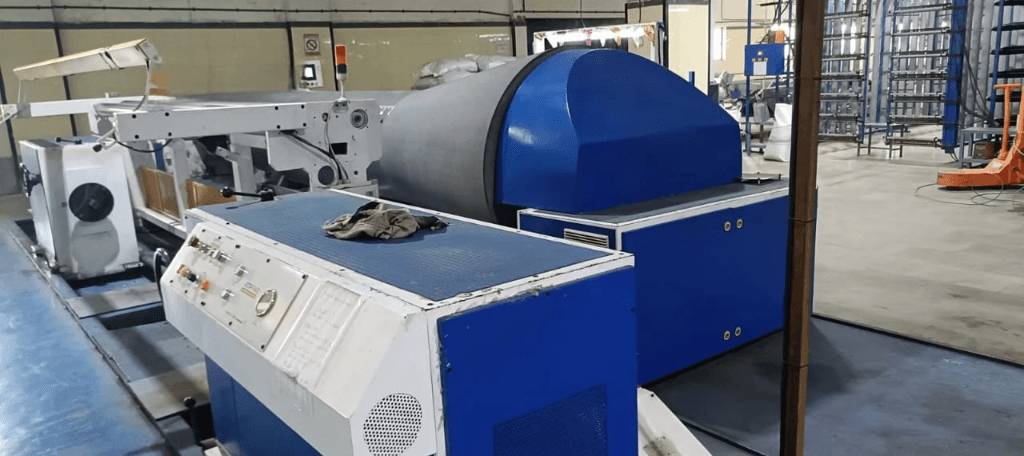

The Sectional Warping Machine by ATP FAB is engineered for high-performance and precision pattern preparation. Equipped with a 2800 mm working width, a 3.14 meter drum circumference, and an 8.5° cone angle, this machine delivers excellent sectional warping at speeds of up to 600 mtr/min and beaming speeds up to 100 mtr/min. It features hydraulic donning and doffing, and a 640-end resolving frame type creel with electronic photo sensor stop motion.
Technical Specifications
Working Width2800 MM
Drum Circumference3.14 Mtr
Cone Degree8.5'
Cone Length1550 MM
Warping Speed0-600 MTR / MIN
Beaming Speed0-100 MTR / MIN
Beam Flange Dia1000 MM
Warping Drive18 K.W.A.C. Electric Motor
Beaming Drive33 K.W.A.C. Electric Motor
Power Requirement18 kW (Warping) / 33 kW (Beaming)
Beam Donning / DoffingHydraulic

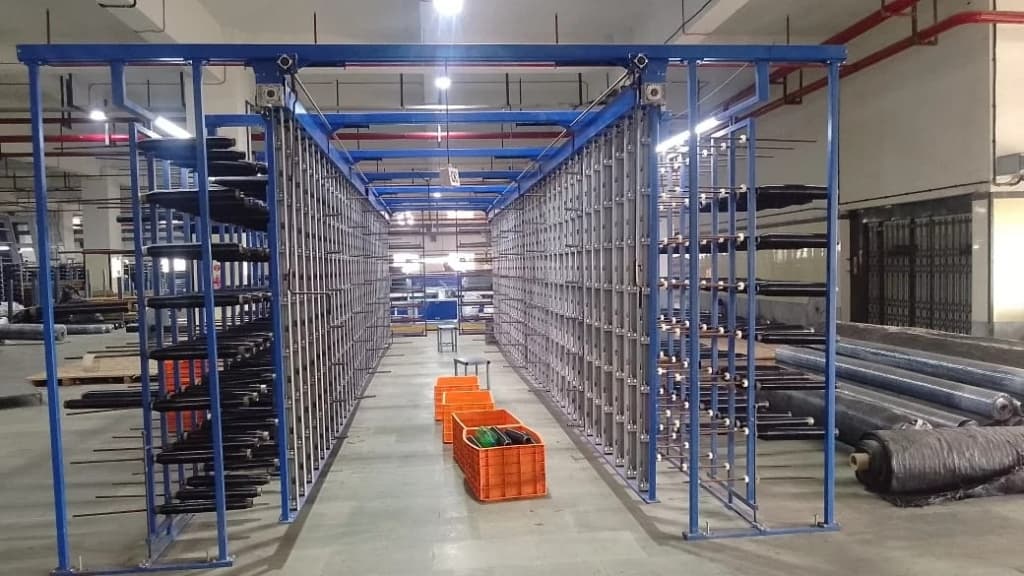

Warping Creel640 ends
Creel TypeResolving Frame Type Creel
Creel Pitch260-280 MM Horizontal & Vertical Pitch, 8 Deck
Stop MotionElectronic Photo Sensor Stop Motion
Compatible YarnsCotton, Polyester, Blends, Viscose, Acrylic
Make / BrandATP FAB
Key Features
- ✓Working Width: 2800 MM
- ✓Drum Circumference: 3.14 Mtr with 8.5' Cone Degree
- ✓Warping Speed: 0-600 mtr/min, Beaming Speed: 0-100 mtr/min
- ✓Hydraulic Beam Donning & Doffing
- ✓Warping Creel with 640 ends (Resolving Frame Type)
- ✓260-280 MM Horizontal & Vertical Pitch, 8 Deck
- ✓Electronic Photo Sensor Stop Motion
